MURS420 - Surface Mount Ultrafast Fast Recover Rectifiers

📥 Download Datasheet

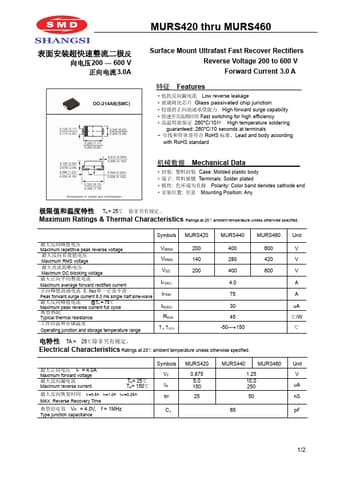

MURS420 Datasheet Preview — Preview of MURS420 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MURS420
Manufacturer	SMD
File Size	1.45 MB
Description	Surface Mount Ultrafast Fast Recover Rectifiers
Datasheet	MURS420-SMD.pdf

MURS420 Product details

Features

Low reverse leakage.
Glass passivated chip junction.
High forward surge capability.
Fast switching for high efficiency.
260°C/10 High temperature soldering guaranteed: 260°C/10 seconds at terminals.
RoHS 。Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Color band denotes cathode end.
: Mounting Position: Any TA = 25℃ 。 Maximum Ratings & Thermal Characterist.
