MAQ5280 Datasheet - MICREL

25mA 120V - Low IQ High PSRR LDO

MAQ5280 Features

* Wide Input Voltage Range: 4.5V to 120V DC Very Low Quiescent Current: 31µA typical 25mA guaranteed output current Adjustable Output from 1.215V to 5V DC voltage protection down to -24V Ability to withstand up t

MAQ5280 General Description

The MAQ5280 is a high performance low dropout regulator, offering a very low noise output with a very wide input voltage operating range, up to 120V DC input voltage. Ideal for high input voltage applications such as automotive and telecom, the MAQ5280 offers 2% initial accuracy, extremely high powe.

MAQ5280 Datasheet (367.78 KB)

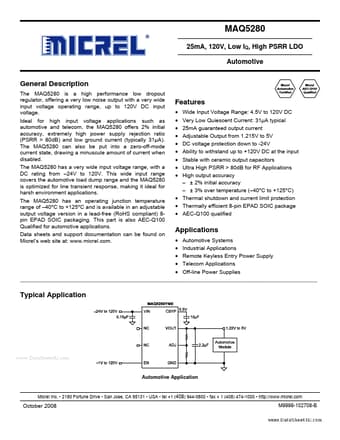

Preview of MAQ5280 PDF

Datasheet Details

Part number:

MAQ5280

Manufacturer:

MICREL

File Size:

367.78 KB

Description:

25ma 120v - low iq high psrr ldo.
