MAQ4124

Automotive AEC-Q100 Qualified Dual 3A Peak Low-Side MOSFET Driver

MAQ4124 Features

* Automotive AEC-Q100 Qualified

* High ±3A peak output current

* Wide 4.5V to 20V supply voltage range

* Low 2.3Ω output resistance

* Matched rise and fall times

* Fast 10ns rise/fall times with 1800pF capacitive load

* Low propagation delay ti

MAQ4124 General Description

The MAQ4123/MAQ4124/MAQ4125 are a family of dual 3A buffer/MOSFET drivers intended for driving power MOSFETs, IGBTs and other heavy loads (capacitive, resistive or inductive) which require low-impedance, high peak currents and fast switching times. They are available in inverting, non-inverting and .

MAQ4124 Datasheet (431.47 KB)

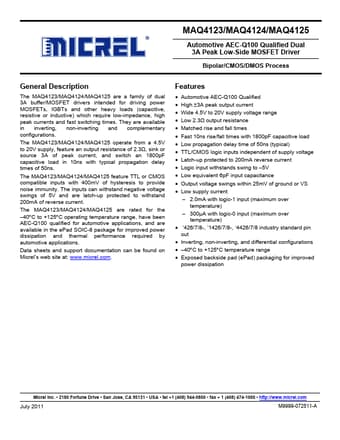

Preview of MAQ4124 PDF

Datasheet Details

Part number:

MAQ4124

Manufacturer:

Micrel Semiconductor

File Size:

431.47 KB

Description:

Automotive aec-q100 qualified dual 3a peak low-side mosfet driver.
