MAQ4123, Automotive AEC-Q100 Qualified Dual 3A Peak Low-Side MOSFET Driver

MAQ4123/MAQ4124/MAQ4125 Automotive AEC-Q100 Qualified Dual 3A Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process General .
The MAQ4123/MAQ4124/MAQ4125 are a family of dual 3A buffer/MOSFET drivers intended for driving power MOSFETs, IGBTs and other heavy loads (capacitive,.

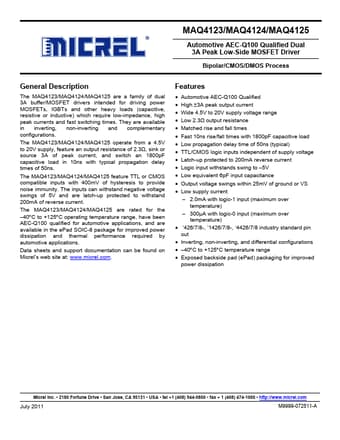

datasheet Preview Page 1 from Datasheet4u.com

MAQ4123-MicrelSemiconductor.pdf

MAQ4123 Datasheet Preview — Preview of MAQ4123 PDF

Datasheet Details

Part number:

MAQ4123

Manufacturer:

Micrel Semiconductor

File Size:

431.47 KB

Description:

Automotive AEC-Q100 Qualified Dual 3A Peak Low-Side MOSFET Driver

Features

* Automotive AEC-Q100 Qualified
* High ±3A peak output current
* Wide 4.5V to 20V supply voltage range
* Low 2.3Ω output resistance
* Matched rise and fall times
* Fast 10ns rise/fall times with 1800pF capacitive load
* Low propagation delay ti
