MIC2293C - High Frequency PWM White LED Drivers

Product Overview

MICREL

Datasheet Details

Part number	MIC2293C
Manufacturer	MICREL
File Size	256.47 KB
Description	High Frequency PWM White LED Drivers
Datasheet	MIC2293C Datasheet
Note	This datasheet PDF includes multiple part numbers: MIC2293C, MIC2292C. Please refer to the document for exact specifications by model.

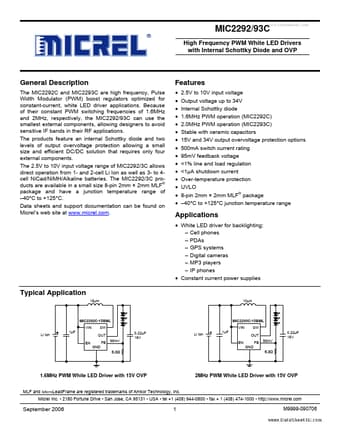

Additional preview pages of the MIC2293C datasheet.

Product details

Description

The MIC2292C and MIC2293C are high frequency, Pulse Width Modulator (PWM) boost regulators optimized for constant-current, white LED driver applications.

Features

2.5V to 10V input voltage Output voltage up to 34V Internal Schottky diode 1.6MHz PWM operation (MIC2292C) 2.0MHz PWM operation (MIC2293C) Stable with ceramic capacitors 15V and 34V output overvoltage protection options 500mA switch current rating 95mV feedback voltage.
