MIC22950

10A Integrated Switch Synchronous Buck Regulator

MIC22950 Features

* a full range of sequencing and tracking options. The EN/DLY and the DELAY pins, combined with the POR/PG pin, allow multiple outputs to be sequenced in several ways during turn-on and turn-off by using EN pin. The RC (Ramp Controlâ„¢) pin allows the device to be connected to any another device in the

MIC22950 General Description

The Micrel MIC22950 is a high-efficiency 10A integrated switch, synchronous buck (step-down) regulator. The MIC22950 switching frequency is programmable from 400kHz to 2MHz, allowing the customer to optimize designing either for efficiency or for the smallest footprint. The MIC22950 achieves over 95.

MIC22950 Datasheet (1.08 MB)

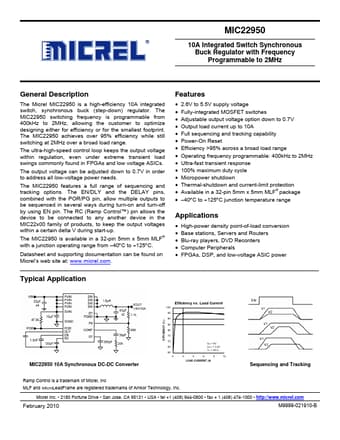

Preview of MIC22950 PDF

Datasheet Details

Part number:

MIC22950

Manufacturer:

Micrel

File Size:

1.08 MB

Description:

10a integrated switch synchronous buck regulator.
