MIC2295 Datasheet, Regulator, Micrel Semiconductor

MIC2295 Features

  • Regulator
  • 2.5V to 10V input voltage range Output voltage adjustab

PDF File Details

Part number:

MIC2295

Manufacturer:

Micrel Semiconductor

File Size:

1.24MB

Download:

📄 Datasheet

Description:

High power density 1.2a boost regulator. The MIC2295 is a 1.2Mhz, PWM dc/dc boost switching regulator available in low profile Thin SOT23 and 2mm x 2mm MLF package options.

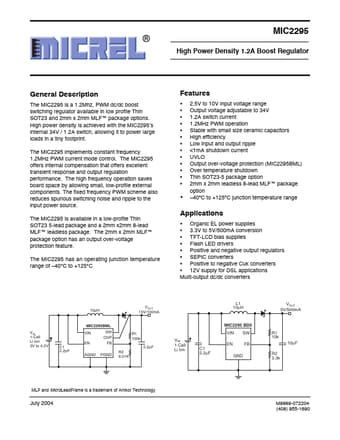

Datasheet Preview: MIC2295 📥 Download PDF (1.24MB)
Page 2 of MIC2295 Page 3 of MIC2295

MIC2295 Application

  • Applications
  • Organic EL power supplies
  • 3.3V to 5V/500mA conversion
  • TFT-LCD bias supplies
  • Flash LED drivers <
