MIC47150 Datasheet, Regulator, MICREL

MIC47150 Features

  • Regulator
  • Input Voltage Range:
      – VIN: 1.4V to 6.5V
      – VBIAS: 3.0V to 6.5V
  • Stable with 1µF ceramic capacitor
  • ±1% initial tolerance

PDF File Details

Part number:

MIC47150

Manufacturer:

MICREL

File Size:

571.40kb

Download:

📄 Datasheet

Description:

1.5a / low voltage adjustable high-bandwidth ldo regulator. The MIC47150 is a high-bandwidth, low-dropout, 1.5A voltage regulator ideal for powering core voltages of lowpower microprocessors. T

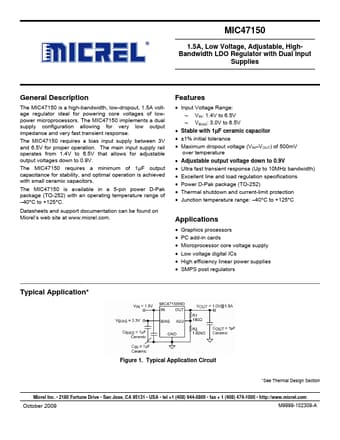

Datasheet Preview: MIC47150 📥 Download PDF (571.40kb)
Page 2 of MIC47150 Page 3 of MIC47150

MIC47150 Application

  • Applications
  • Graphics processors
  • PC add-in cards
  • Microprocessor core voltage supply
  • Low voltage digital ICs
