MIC47050 - 500mA ULDO

Micrel Semiconductor

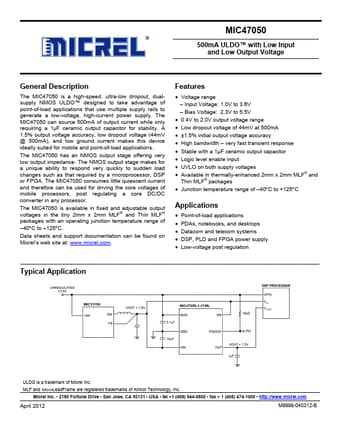

MIC47050 Datasheet Preview — Preview of MIC47050 PDF

Datasheet Details

Part number	MIC47050
Manufacturer	Micrel Semiconductor
File Size	489.44 KB
Description	500mA ULDO
Datasheet	MIC47050-MicrelSemiconductor.pdf

MIC47050 Product details

Description

The MIC47050 is a high-speed, ultra-low dropout, dualsupply NMOS ULDO™ designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply.

Features

Voltage range.
Input Voltage: 1.0V to 3.6V.
Bias Voltage: 2.3V to 5.5V.
0.4V to 2.0V output voltage range.
Low dropout voltage of 44mV at 500mA.
±1.5% initial output voltage accuracy.
High bandwidth.
very fast transient response.
Stable with a 1µF ceramic output capacitor.
Logic level enable input.
UVLO on both supply voltages.
Available in thermally-enhanced 2mm x 2mm MLF® and Thin MLF® packages.
Junction temperature.
