MIC4723

Integrated Switch Buck Regulator

MIC4723 Features

* 2.7 to 5.5V supply voltage 2.0MHz PWM mode Output current to 3A Up to 94% efficiency 100% maximum duty cycle Adjustable output voltage option down to 1V Ultra-fast transi

MIC4723 General Description

The Micrel MIC4723 is a high efficiency PWM buck (stepdown) regulator that provides up to 3A of output current. The MIC4723 operates at 2.0MHz and has proprietary internal compensation that allows a closed loop bandwidth of over 200KHz. The low on-resistance internal p-channel MOSFET of the MIC4723 .

MIC4723 Datasheet (540.58 KB)

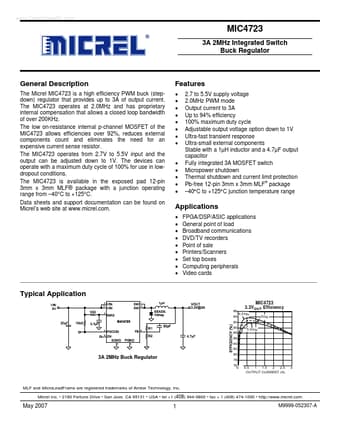

Preview of MIC4723 PDF

Datasheet Details

Part number:

MIC4723

Manufacturer:

Micrel Semiconductor

File Size:

540.58 KB

Description:

Integrated switch buck regulator.
