MD8550A, MD8530 CMOS Voltage Regulator

MINGDA MICROTRONICS

Description

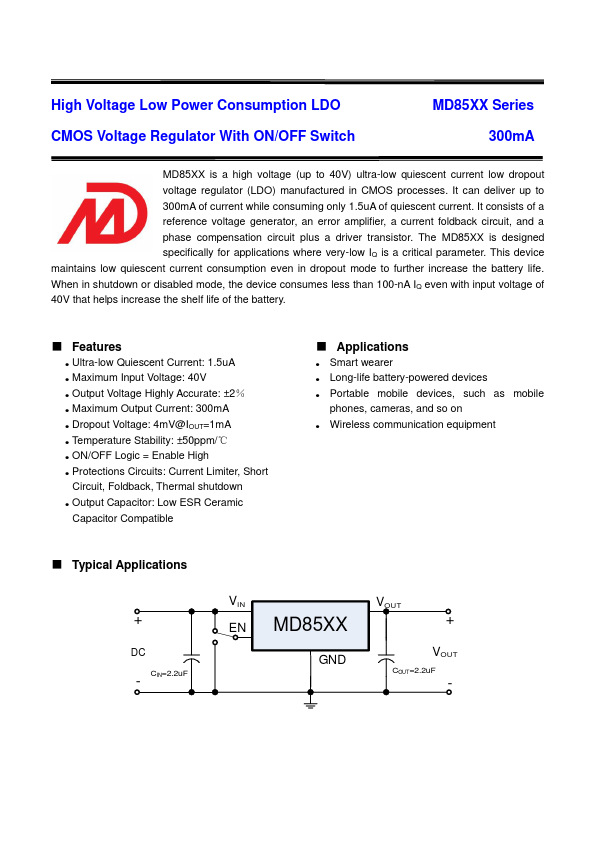

High Voltage Low Power Consumption LDO CMOS Voltage Regulator With ON/OFF Switch MD85XX Series 300mA MD85XX is a high voltage (up to 40V) ultra-low .

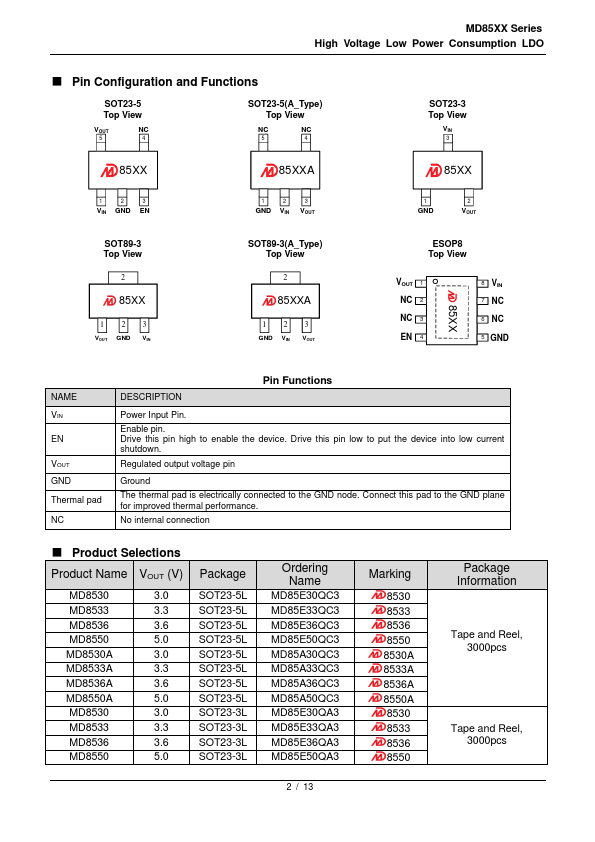

Power Input Pin.

📥 Download Datasheet

MD8550A Datasheet Preview — This datasheet PDF includes multiple part numbers: MD8550A, MD8530. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MD8550A, MD8530
Manufacturer: MINGDA MICROTRONICS
File Size: 1.12 MB
Datasheet: MD8530-MINGDAMICROTRONICS.pdf
Description: CMOS Voltage Regulator
Note: This datasheet PDF includes multiple part numbers: MD8550A, MD8530.
Please refer to the document for exact specifications by model.

Features

* Ultra-low Quiescent Current: 1.5uA
* Maximum Input Voltage: 40V
* Output Voltage Highly Accurate: ±2％
* Maximum Output Current: 300mA
* Dropout Voltage: 4mV@IOUT=1mA
* Temperature Stability: ±50ppm/℃
* ON/OFF Logic = Enable High
* Protections Circuits: Current Limit

Applications

* where very-low IQ is a critical parameter. This device maintains low quiescent current consumption even in dropout mode to further increase the battery life. When in shutdown or disabled mode, the device consumes less than 100-nA IQ even with input voltage of 40V that helps increase the shelf life o
