MD85F0, MD8530 - CMOS Voltage Regulator

Name: MD85F0
SKU: MD85F0-1582478

MINGDA MICROTRONICS

📥 Download Datasheet

MD85F0 Datasheet Preview — This datasheet PDF includes multiple part numbers: MD85F0, MD8530. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MD85F0, MD8530
Manufacturer	MINGDA MICROTRONICS
File Size	1.12 MB
Description	CMOS Voltage Regulator
Datasheet	MD8530-MINGDAMICROTRONICS.pdf
Note	This datasheet PDF includes multiple part numbers: MD85F0, MD8530. Please refer to the document for exact specifications by model.

MD85F0 Product details

Description

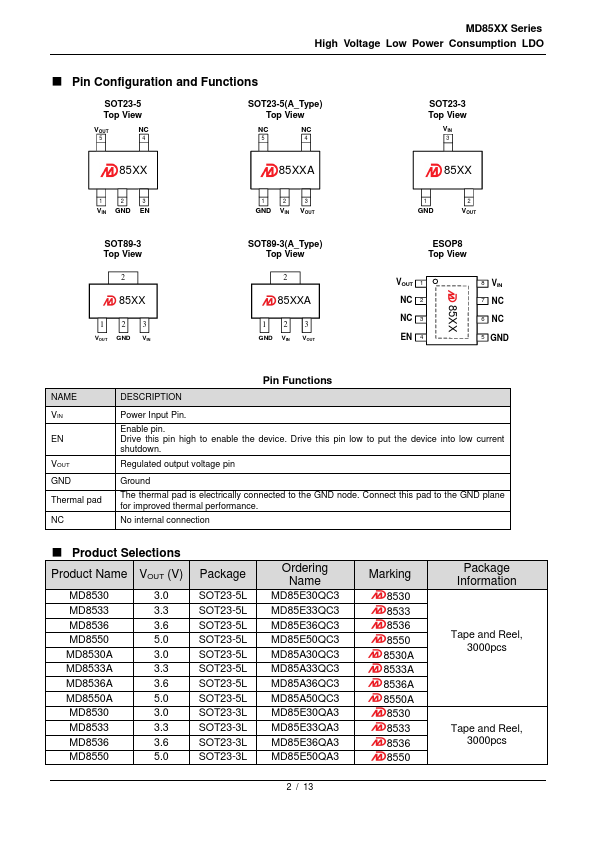

Power Input Pin. Product Selections Product Name VOUT (V) MD8530 3.0 MD8533 3.3 MD8536 3.6 MD8550 5.0 MD8530A 3.0 MD8533A 3.3 MD8536A 3.6 MD8550A 5.0 MD8530 3.0 MD8533

Features

s.
Ultra-low Quiescent Current: 1.5uA.
Maximum Input Voltage: 40V.
Output Voltage Highly Accurate: ±2％.
Maximum Output Current: 300mA.
Dropout Voltage: 4mV@IOUT=1mA.
Temperature Stability: ±50ppm/℃.
ON/OFF Logic = Enable High.
Protections Circuits: Current Limiter, Short Circuit, Foldback, Thermal shutdown.
Output Capacitor: Low ESR Ceramic Capacitor Compatible.
