RS5M, RS5A Fast Recovery Rectifier Diodes

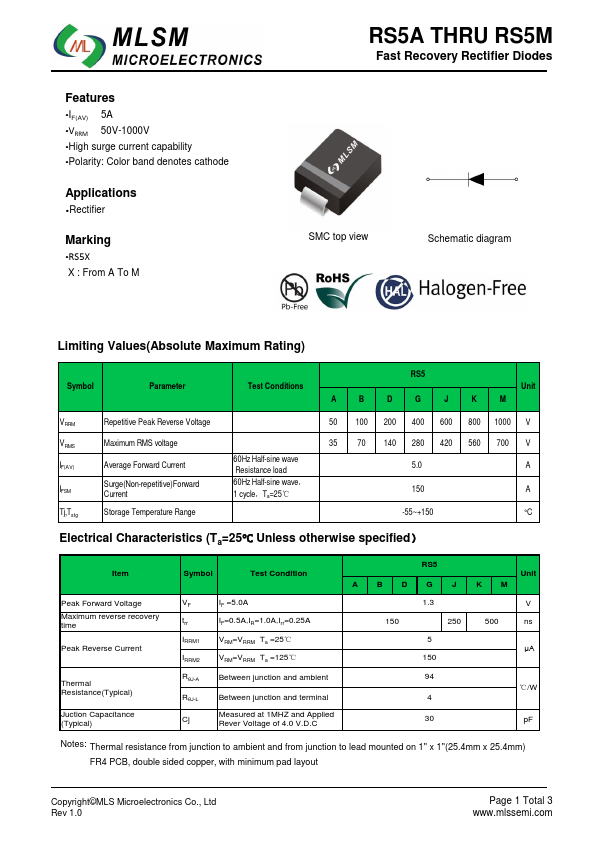

📥 Download Datasheet Datasheet Preview Page 1

Description

.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS5M, RS5A. Please refer to the document for exact specifications by model.

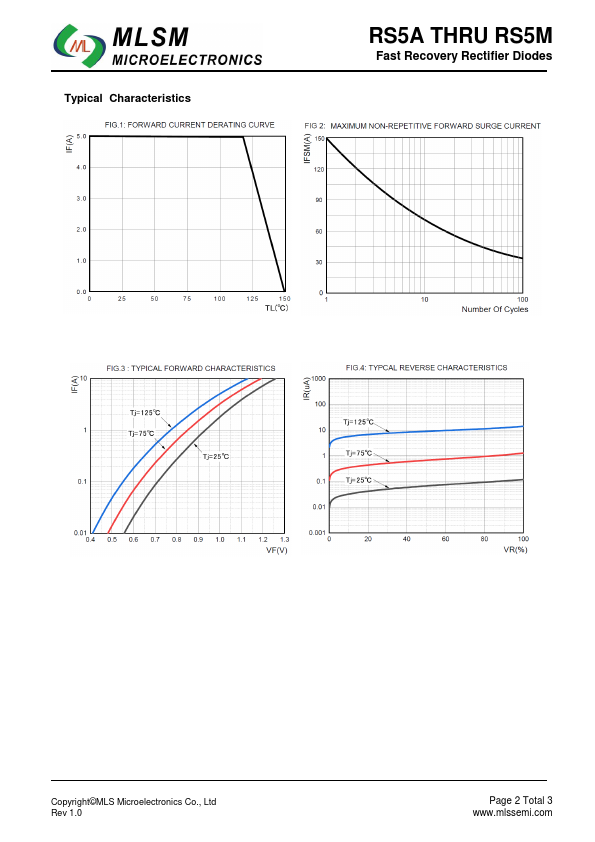

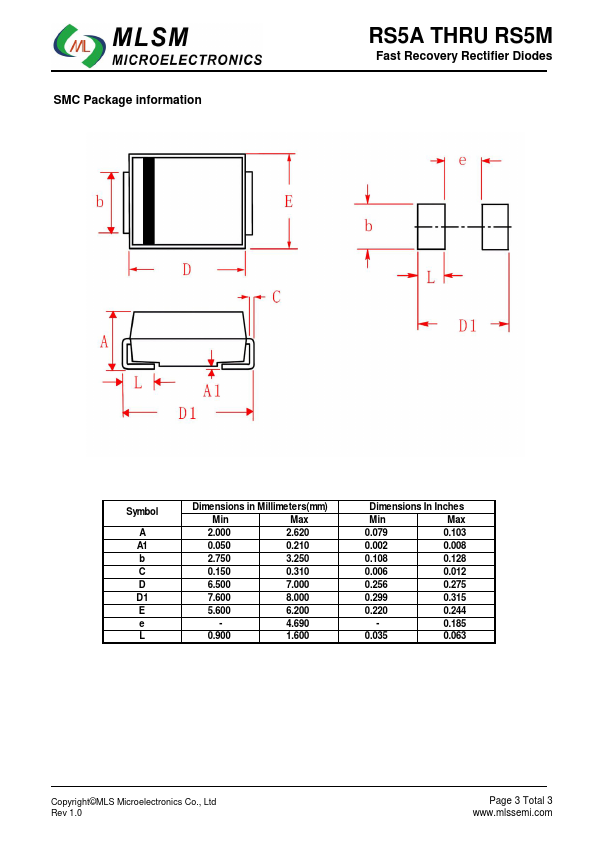

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS5M, RS5A
Manufacturer
MLSM
File Size
388.22 KB
Datasheet
RS5A-MLSM.pdf
Description
Fast Recovery Rectifier Diodes
Note
This datasheet PDF includes multiple part numbers: RS5M, RS5A.
Please refer to the document for exact specifications by model.

Features

* IF(AV) 5A
* VRRM 50V-1000V
* High surge current capability

Applications

* Rectifier Marking
* RS5X X : From A To M RS5A THRU RS5M Fast Recovery Rectifier Diodes SMC top view Schematic diagram Limiting Values(Absolute Maximum Rating) Symbol Parameter Test Conditions RS5 Unit A B D G J K M VRRM Repetitive Peak Reverse Voltage 50 100 200 40
