MSN3400, 30V(D-S) N-Channel Enhancement Mode Power MOS FET

MSN3400 30V(D-S) N-Channel Enhancement Mode Power MOS FET General .

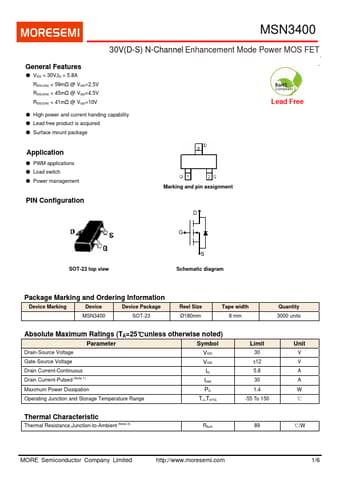

datasheet Preview Page 1 from Datasheet4u.com

MSN3400-MORESEMI.pdf

MSN3400 Datasheet Preview — Preview of MSN3400 PDF

Datasheet Details

Part number:

MSN3400

Manufacturer:

MORESEMI

File Size:

383.29 KB

Description:

30V(D-S) N-Channel Enhancement Mode Power MOS FET

Features

* VDS = 30V,ID = 5.8A RDS(ON) < 59mΩ @ VGS=2.5V RDS(ON) < 45mΩ @ VGS=4.5V RDS(ON) < 41mΩ @ VGS=10V
* High power and current handing capability
* Lead free product is acquired

Applications

* Load switch
* Power management PIN Configuration Marking and pin assignment D G SOT-23 top view S Schematic diagram Package Marking and Ordering Information Device Marking Device Device Package MSN3400 SOT-23 Reel Size Ø180mm Tape width 8 mm Quantity 3000 units Absolute Maxim
