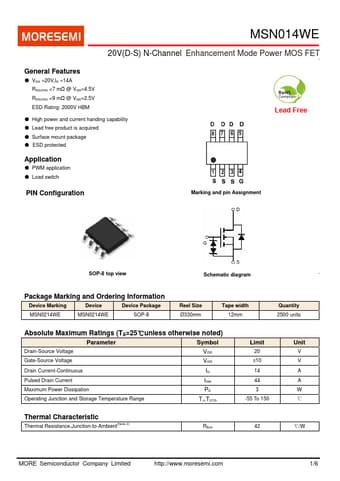

MSN014WE Datasheet, Mosfet, MORESEMI

MSN014WE Features

• Mosfet
• VDS =20V,ID =14A RDS(ON) <7 mΩ @ VGS=4.5V RDS(ON) <9 mΩ @ VGS=2.5V ESD Rating: 2000V HBM
• High power and current handing capability
• Lead free product is acq

PDF File Details

Part number:

MSN014WE

Manufacturer:

MORESEMI

File Size:

618.84kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet.
