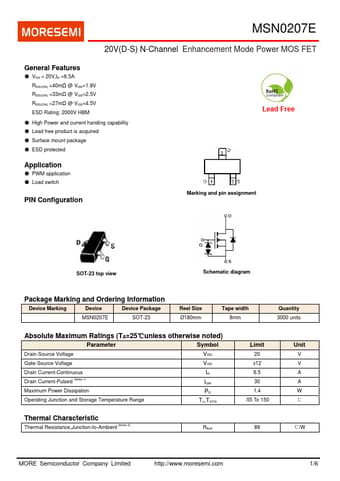

MSN0207E Datasheet, Mosfet, MORESEMI

MSN0207E Features

• Mosfet
• VDS = 20V,ID =6.5A RDS(ON) <40mΩ @ VGS=1.8V RDS(ON) <33mΩ @ VGS=2.5V RDS(ON) <27mΩ @ VGS=4.5V ESD Rating: 2000V HBM
• High Power and current handing capability

PDF File Details

Part number:

MSN0207E

Manufacturer:

MORESEMI

File Size:

493.90kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

TAGS

MSN0207E

MORESEMI
