MSN3420 - N-Channel Enhancement Mode Power MOSFET

The MSN3420 by MORESEMI is a N-Channel Enhancement Mode Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

MSN3420 N-Channel Enhancement Mode Power MOSFET by MORESEMI - Datasheet Preview — Official preview page of the MSN3420 N-Channel Enhancement Mode Power MOSFET datasheet (MORESEMI).

Datasheet Details

Part number	MSN3420
Manufacturer	MORESEMI
File Size	343.78 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	MSN3420-MORESEMI.pdf

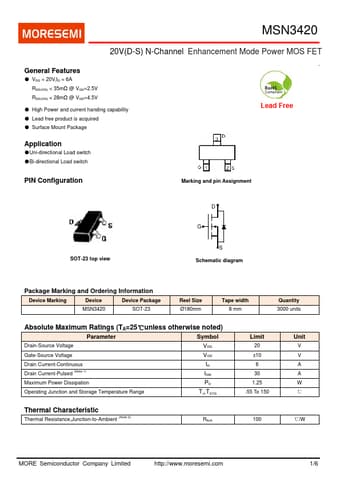

Additional preview pages of the MSN3420 datasheet.

MSN3420 Product details

Features

VDS = 20V,ID = 6A RDS(ON) < 35mΩ @ VGS=2.5V RDS(ON) < 28mΩ @ VGS=4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
