MSP2303 P-Channel Enhancement Mode Power MOSFET

MSP2303 Description

MSP2303 -30V(D-S) P-Channel Enhancement Mode Power MOS FET General .

MSP2303 Features

* VDS = -30V,ID = -2.0A RDS(ON) < 130mΩ @ VGS=-10V RDS(ON) < 180mΩ @ VGS=-4.5V
* High power and current handing capability
* Lead free product is acquired

MSP2303 Applications

* Load switch
* Power management PIN Configuration Marking and pin assignment D G SOT-23 top view S Schematic diagram Package Marking and Ordering Information Device Marking Device Device Package MSP2303 SOT-23 Reel Size Ø180mm Tape width 8 mm Quantity 3000 units Absolute Maxim

📥 Download Datasheet

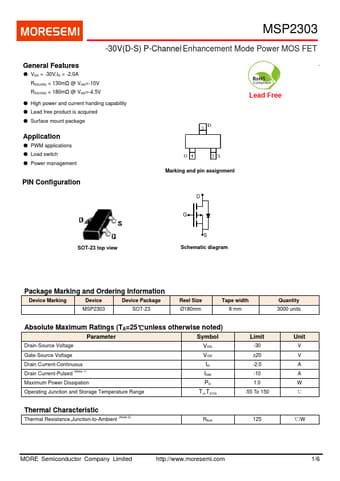

Preview of MSP2303 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSP2303
Manufacturer
MORESEMI
File Size
333.83 KB
Datasheet
MSP2303-MORESEMI.pdf
Description
P-Channel Enhancement Mode Power MOSFET
