MSP0203 Datasheet, Mosfet, MORESEMI

MSP0203 Features

• Mosfet
• VDS = -20V,ID = -3A RDS(ON) < 140mΩ @ VGS=-2.5V RDS(ON) < 110mΩ @ VGS=-4.5V
• High Power and current handing capability
• Lead free product is acquired

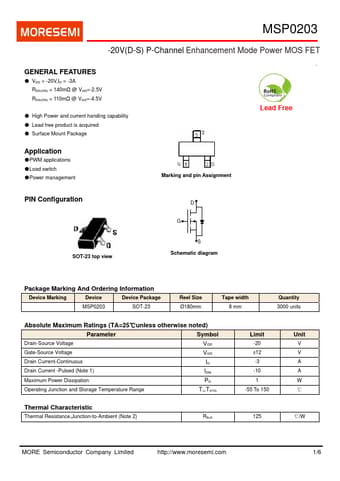

PDF File Details

Part number:

MSP0203

Manufacturer:

MORESEMI

File Size:

367.41kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.

MSP0203 Application

• Applications
• Load switch
• Power management Lead Free Marking and pin Assignment PIN Configuration D G SOT-23 top view S Schema
