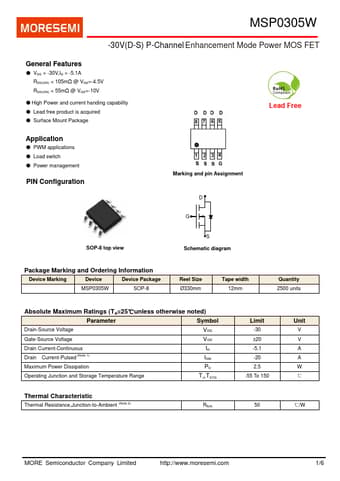

MSP0305W Datasheet, Mosfet, MORESEMI

MSP0305W Features

• Mosfet
• VDS = -30V,ID = -5.1A RDS(ON) < 105mΩ @ VGS=-4.5V RDS(ON) < 55mΩ @ VGS=-10V
• High Power and current handing capability
• Lead free product is acquired

PDF File Details

Part number:

MSP0305W

Manufacturer:

MORESEMI

File Size:

386.25kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.

MSP0305W Application

• Applications
• Load switch
• Power management PIN Configuration Marking and pin Assignment D G SOP-8 top view S Schematic diagra
