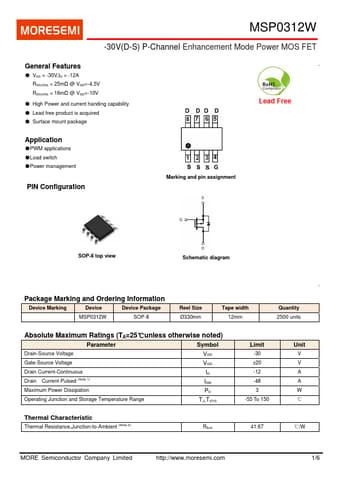

MSP0312W Datasheet, Mosfet, MORESEMI

MSP0312W Features

• Mosfet
• VDS = -30V,ID = -12A RDS(ON) < 25mΩ @ VGS=-4.5V RDS(ON) < 16mΩ @ VGS=-10V
• High Power and current handing capability
• Lead free product is acquired

PDF File Details

Part number:

MSP0312W

Manufacturer:

MORESEMI

File Size:

455.45kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.

MSP0312W Application

• Applications
• Load switch
• Power management PIN Configuration Marking and pin assignment SOP-8 top view Schematic diagram Packag
