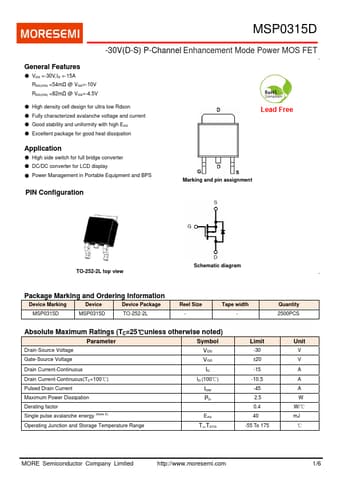

MSP0315D Datasheet, Mosfet, MORESEMI

MSP0315D Features

• Mosfet
• VDS =-30V,ID =-15A RDS(ON) <54mΩ @ VGS=-10V RDS(ON) <82mΩ @ VGS=-4.5V
• High density cell design for ultra low Rdson
• Fully characterized avalanche voltage an

PDF File Details

Part number:

MSP0315D

Manufacturer:

MORESEMI

File Size:

612.68kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.
