MSP0304 P-Channel Enhancement Mode Power MOSFET

MSP0304 Description

MSP0304 -30V(D-S) P-Channel Enhancement Mode Power MOS FET General .

MSP0304 Features

* VDS = -30V,ID = -4.2A RDS(ON) < 130mΩ @ VGS=-2.5V RDS(ON) < 75mΩ @ VGS=-4.5V RDS(ON) < 55mΩ @ VGS=-10V
* High power and current handing capability
* Lead free product is acquired

MSP0304 Applications

* Load switch
* Power management Marking and Pin Assignment PIN Configuration D G SOT-23 top view S Schematic diagram Package Marking And Ordering Information Device Marking Device Device Package MSP0304 SOT-23 Reel Size Ø180mm Tape width 8 mm Quantity 3000 units Absolute Maxim

📥 Download Datasheet

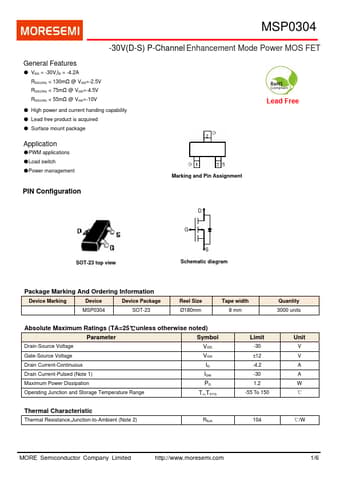

Preview of MSP0304 PDF
