MSP02120V1 - Silicon Carbide Diode

Datasheet Summary

Features

  • -1200-Volt Schottky Rectifier -Shorter recovery time -High-speed switching possible -High-Frequency Operation -Temperature-Independent Switching Behavior -Extremely Fast Switching -Positive Temperature Coefficient on VF.

📥 Download Datasheet

Datasheet preview – MSP02120V1

Datasheet Details

Part number MSP02120V1
Manufacturer Maple Semiconductor
File Size 337.49 KB
Description Silicon Carbide Diode
Datasheet download datasheet MSP02120V1 Datasheet

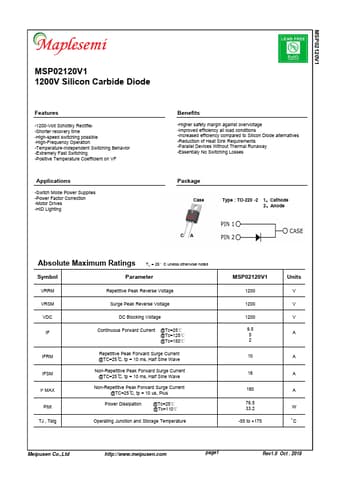

Additional preview pages of the MSP02120V1 datasheet.

📁 Similar Datasheet

  • MSP0203 - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0204 - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0204E - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0205 - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0205A - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0304 - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0305W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0307W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0309W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP0312W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
Other Datasheets by Maple Semiconductor

Full PDF Text Transcription

Click to expand full text
MSP02120V1 MSP02120V1 1200V Silicon Carbide Diode Features -1200-Volt Schottky Rectifier -Shorter recovery time -High-speed switching possible -High-Frequency Operation -Temperature-Independent Switching Behavior -Extremely Fast Switching -Positive Temperature Coefficient on VF Applications -Switch Mode Power Supplies -Power Factor Correction -Motor Drives -HID Lighting Benefits -Higher safety margin against overvoltage -Improved efficiency all load conditions -Increased efficiency compared to Silicon Diode alternatives -Reduction of Heat Sink Requirements -Parallel Devices Without Thermal Runaway -Essentialy No Switching Losses Package Case Type : TO-220 -2 1、Cathode 2、Anode CA Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter VRRM VRSM VDC IF IFRM IFSM
