MSP0204E Datasheet, Mosfet, MORESEMI

MSP0204E Features

• Mosfet
• VDS = -20V,ID =-4A RDS(ON) < 60mΩ @ VGS=-2.5V RDS(ON) < 45mΩ @ VGS=-4.5V ESD Rating: 2500V HBM
• High Power and current handing capability
• Lead free product

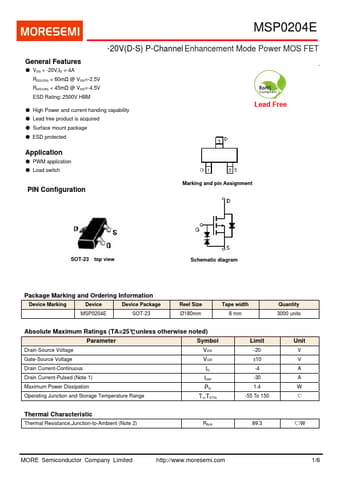

PDF File Details

Part number:

MSP0204E

Manufacturer:

MORESEMI

File Size:

343.24kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.
