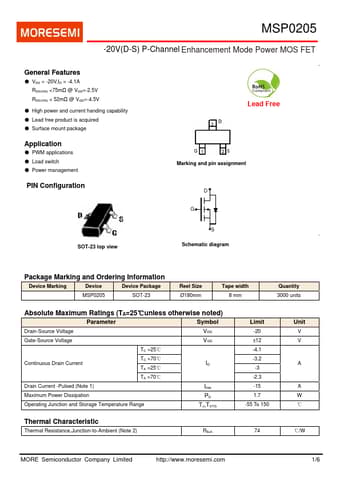

MSP0205 Datasheet, Mosfet, MORESEMI

MSP0205 Features

• Mosfet
• VDS = -20V,ID = -4.1A RDS(ON) <75mΩ @ VGS=-2.5V RDS(ON) < 52mΩ @ VGS=-4.5V
• High power and current handing capability
• Lead free product is acquired

PDF File Details

Part number:

MSP0205

Manufacturer:

MORESEMI

File Size:

379.41kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.

MSP0205 Application

• Applications
• Load switch
• Power management PIN Configuration SOT-23 top view Lead Free Marking and pin assignment D G S Schemati
