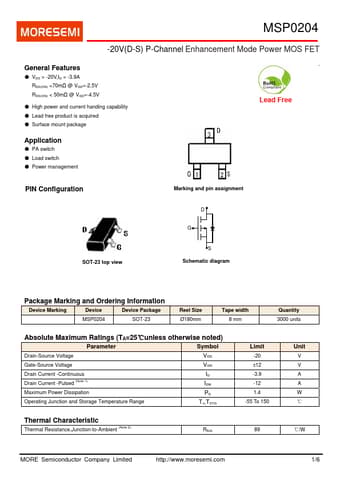

MSP0204 Datasheet, Mosfet, MORESEMI

MSP0204 Features

• Mosfet
• VDS = -20V,ID = -3.9A RDS(ON) <70mΩ @ VGS=-2.5V RDS(ON) < 50mΩ @ VGS=-4.5V
• High power and current handing capability
• Lead free product is acquired

PDF File Details

Part number:

MSP0204

Manufacturer:

MORESEMI

File Size:

356.46kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.
