Part number:
MSP0309W
Manufacturer:
MORESEMI
File Size:
476.32 KB
Description:
P-channel enhancement mode power mosfet.

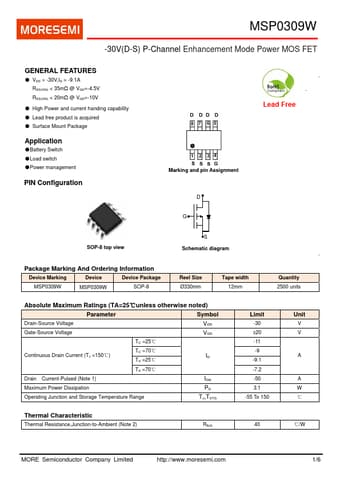

MSP0309W Datasheet (476.32 KB)
* VDS = -30V,ID = -9.1A RDS(ON) < 35mΩ @ VGS=-4.5V RDS(ON) < 20mΩ @ VGS=-10V
* High Power and current handing capability
* Lead free product is acquired
* Surface Mount Package Application
* Battery Switch
* Load switch
* Power management PIN Configuration Lead Free Marking
MSP0309W Datasheet (476.32 KB)
MSP0309W
MORESEMI
476.32 KB
P-channel enhancement mode power mosfet.
