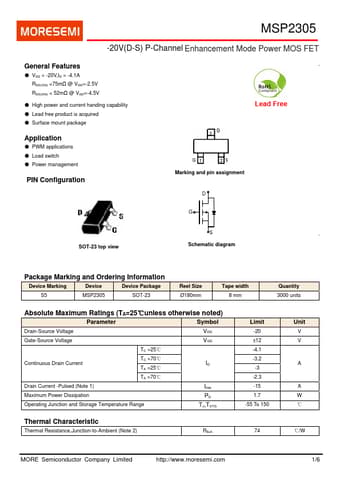

MSP2305 Datasheet, Mosfet, MORESEMI

MSP2305 Features

• Mosfet
• VDS = -20V,ID = -4.1A RDS(ON) <75mΩ @ VGS=-2.5V RDS(ON) < 52mΩ @ VGS=-4.5V
• High power and current handing capability
• Lead free product is acquired

PDF File Details

Part number:

MSP2305

Manufacturer:

MORESEMI

File Size:

369.47kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet.

MSP2305 Application

• Applications
• Load switch
• Power management PIN Configuration Lead Free Marking and pin assignment D G SOT-23 top view S Schem
