IB0503LS-1W, IB0505LD-1W Datasheet - MORNSUN

IB0503LS-1W, IB0505LD-1W, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

IB_LD-1W & IB_LS-1W Series 1W, FIXED INPUT, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER .

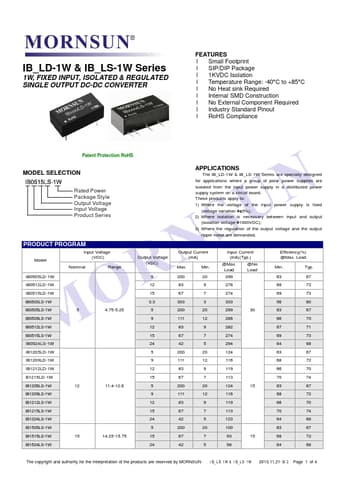

datasheet Preview Page 1 from Datasheet4u.com

IB0505LD-1W-MORNSUN.pdf

IB0503LS-1W Datasheet Preview — This datasheet PDF includes multiple part numbers: IB0503LS-1W, IB0505LD-1W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IB0503LS-1W, IB0505LD-1W

Manufacturer:

MORNSUN

File Size:

495.59 KB

Description:

ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: IB0503LS-1W, IB0505LD-1W.
Please refer to the document for exact specifications by model.

Features

* l Small Footprint l SIP/DIP Package l 1KVDC Isolation l Temperature Range: -40°C to +85°C l No Heat sink Required l Internal SMD Construction l No External Component Required l Industry Standard Pinout l RoHS Compliance Patent Protection RoHS MODEL SELECTION Rated Power Package Style Output Voltag

Applications

* The IB_LD-1W & IB_LS-1W Series are specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is fixed (voltage var
