IB0505LS

FIXED INPUT ISOLATED & REGULATED 1W SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE

IB0505LS Features

* Small Footprint

* SIP/DIP Package

* 1KVDC Isolation

* Regulated Output Voltage

* Temperature Range: -40°C ~+85°C

* Industry Standard Pinout

* No Heat Sink Required

* No External Component Required

* Fully Encapsulated

* RoHS Compliance multi-country patent p

IB0505LS Datasheet (122.37 KB)

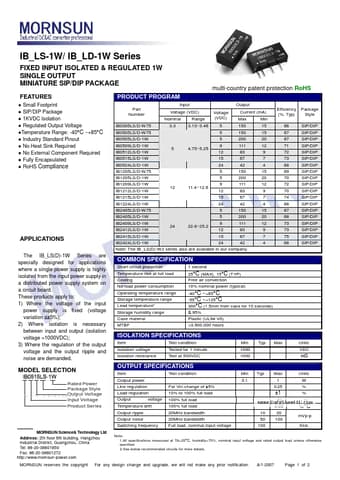

Preview of IB0505LS PDF

Datasheet Details

Part number:

IB0505LS

Manufacturer:

MORNSUN

File Size:

122.37 KB

Description:

Fixed input isolated & regulated 1w single output miniature sip/dip package.
