IB0505XT-W75R3

DC/DC Converter

IB0505XT-W75R3 Features

* Continuous short-circuit protection

* No-load input current as low as 5mA

* Operating ambient temperature range: -40℃ ~ +85℃

* High efficiency up to 74%

* Compact SMD package

* I/O isolation test voltage 1.5k VDC

* Industry standard pin-out Patent Protection RoH

IB0505XT-W75R3 General Description

of reflected ripple current test method. Output Specifications Item Operating Conditions Min. Typ. Max. Voltage Accuracy

*

* ±3 Linear Regulation Input voltage change: ±1%

*

* ±0.25 Load Regulation 10%-100% load 3.3VDC output

* Others
<.

IB0505XT-W75R3 Datasheet (701.78 KB)

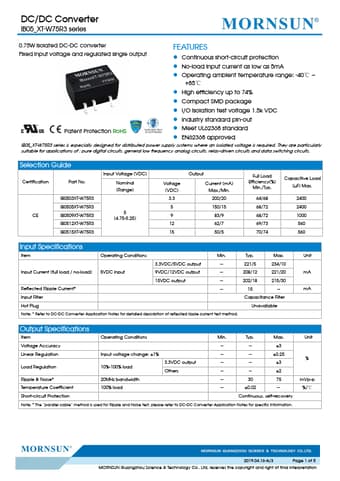

Preview of IB0505XT-W75R3 PDF

Datasheet Details

Part number:

IB0505XT-W75R3

Manufacturer:

MORNSUN

File Size:

701.78 KB

Description:

Dc/dc converter.
