IB0505XT-1WR2, IB0503XT-1WR2 - DC/DC Module Power Supply

MORNSUN

📥 Download Datasheet

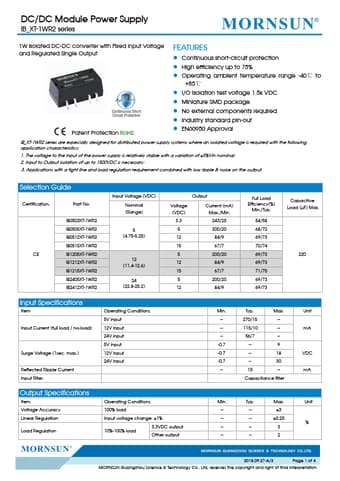

IB0505XT-1WR2 Datasheet Preview — This datasheet PDF includes multiple part numbers: IB0505XT-1WR2, IB0503XT-1WR2. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IB0505XT-1WR2, IB0503XT-1WR2
Manufacturer	MORNSUN
File Size	922.57 KB
Description	DC/DC Module Power Supply
Datasheet	IB0503XT-1WR2-MORNSUN.pdf
Note	This datasheet PDF includes multiple part numbers: IB0505XT-1WR2, IB0503XT-1WR2. Please refer to the document for exact specifications by model.

IB0505XT-1WR2 Product details

Features

Continuous short-circuit protection.
High efficiency up to 75%.
Operating ambient temperature range -40℃ to +85℃ Patent Protection RoHS.
I/O isolation test voltage 1.5k VDC.
Miniature SMD package.
No external components required.
Industry standard pin-out.
EN60950 Approval IB_XT-1WR2 series are especially designed for distributed power supply systems where an isolated voltage is required with the following.
