IB2424LS-1W, IB2405LD-1W ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

IB2424LS-1W Description

IB_LD-1W & IB_LS-1W Series 1W, FIXED INPUT, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER .

IB2424LS-1W Features

* l Small Footprint l SIP/DIP Package l 1KVDC Isolation l Temperature Range: -40°C to +85°C l No Heat sink Required l Internal SMD Construction l No External Component Required l Industry Standard Pinout l RoHS Compliance Patent Protection RoHS MODEL SELECTION Rated Power Package Style Output Voltag

IB2424LS-1W Applications

* The IB_LD-1W & IB_LS-1W Series are specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is fixed (voltage var

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IB2424LS-1W, IB2405LD-1W. Please refer to the document for exact specifications by model.

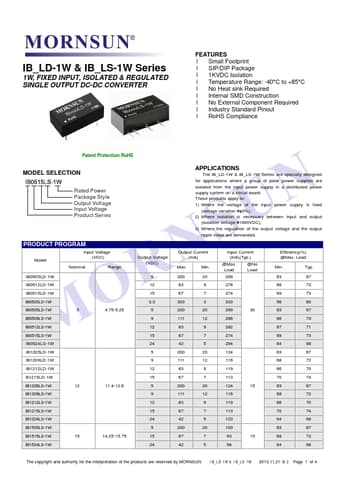

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IB2424LS-1W, IB2405LD-1W
Manufacturer
MORNSUN
File Size
495.64 KB
Datasheet
IB2405LD-1W-MORNSUN.pdf
Description
ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: IB2424LS-1W, IB2405LD-1W.
Please refer to the document for exact specifications by model.
