IB2424LS, IB2405LS FIXED INPUT ISOLATED & REGULATED 1W SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE

IB2424LS Description

IB_LS-1W/ IB_LD-1W Series FIXED INPUT ISOLATED & REGULATED 1W SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE .

IB2424LS Features

* Small Footprint
* SIP/DIP Package
* 1KVDC Isolation
* Regulated Output Voltage
* Temperature Range: -40°C ~+85°C
* Industry Standard Pinout
* No Heat Sink Required
* No External Component Required
* Fully Encapsulated
* RoHS Compliance multi-country patent p

IB2424LS Applications

* The IB_LS(D)-1W Series are specially designed for applications where a single power supply is highly isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is fixed (voltage variation ≤±5%)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IB2424LS, IB2405LS. Please refer to the document for exact specifications by model.

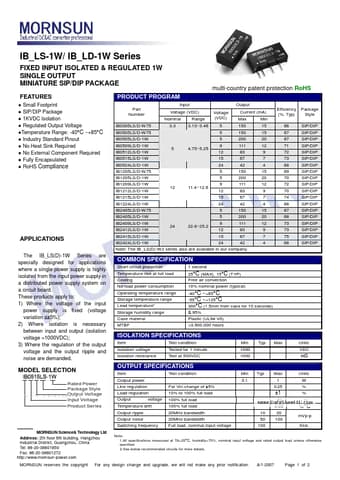

datasheet Preview Page 2

Datasheet Details

Part number
IB2424LS, IB2405LS
Manufacturer
MORNSUN
File Size
122.37 KB
Datasheet
IB2405LS_MORNSUN.pdf
Description
FIXED INPUT ISOLATED & REGULATED 1W SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE
Note
This datasheet PDF includes multiple part numbers: IB2424LS, IB2405LS.
Please refer to the document for exact specifications by model.
