MS6541 Datasheet, Driver, MOSA

MS6541 Features

  • Driver ‧Low supply voltage 2.7 to 5.5V ‧Internal mute function ‧No popping noise ‧Fixed gain of 6 dB for MS6544 Fixed gain of 0 dB for MS6541 ‧High SNR , Slew rate ‧Low distortion ‧Excellent p

PDF File Details

Part number:

MS6541

Manufacturer:

MOSA

File Size:

207.71kb

Download:

📄 Datasheet

Description:

Class ab stereo headphone driver. The MS6544 is an integrated class AB stereo headphone driver contained in an SO8 package. The MS6544 has fixed gain of 6dB and the MS

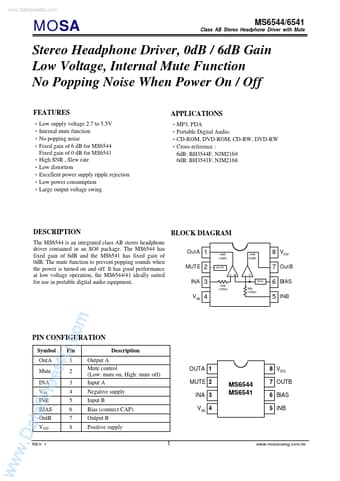

Datasheet Preview: MS6541 📥 Download PDF (207.71kb)
Page 2 of MS6541 Page 3 of MS6541

MS6541 Application

  • Applications ‧MP3, PDA ‧Portable Digital Audio. ‧CD-ROM, DVD-ROM, CD-RW, DVD-RW ‧Cross-reference : 6dB: BH3544F, NJM2169 0dB: BH3541F, NJM2168 www.
