MS65R170 Datasheet - JILIN SINO

MS65R170, N-CHANNEL MOSFET

N R N-CHANNEL MOSFET MS65R170 MAIN CHARACTERISTICS Package ID VDSS Rdson-max （@Vgs=10V） Qg-typ 20A 650 V 0.180Ω 44.4 nC * * .

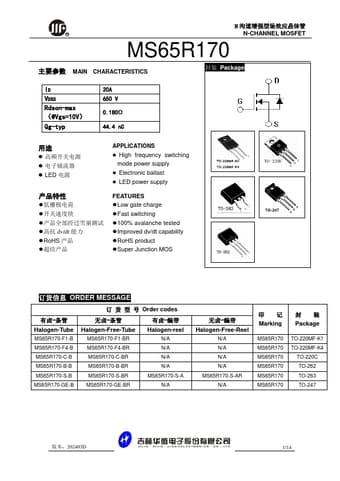

datasheet Preview Page 1 from Datasheet4u.com

MS65R170-JILINSINO.pdf

MS65R170 Datasheet Preview — Preview of MS65R170 PDF

Datasheet Details

Part number:

MS65R170

Manufacturer:

JILIN SINO

File Size:

969.15 KB

Description:

N-CHANNEL MOSFET

Features

* Low gate charge
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability
* RoHS product
* Super Junction MOS ORDER MESSAGE Order codes - - - Halogen-Tube Halogen-Free-Tube MS65R170-F1-B MS65R170-F1-BR Halogen-reel N/A MS65R170-F4-B MS65R170-F4-BR N/A

Applications

* High frequency switching mode power supply
* Electronic ballast
* LED power supply
* dv/dt
* RoHS
