MS6004S, MS6001 Rail-to-Rail Input/Output Amplifier

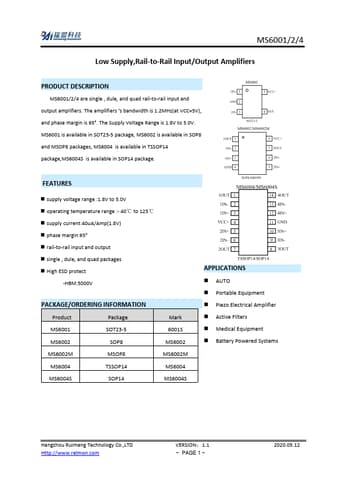

📥 Download Datasheet  Datasheet Preview Page 1

Description

MS6001/2/4 Low Supply,Rail-to-Rail Input/Output Amplifiers PRODUCT .
MS6001/2/4 are single , dule, and quad rail-to-rail input and output amplifiers.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MS6004S, MS6001. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MS6004S, MS6001
Manufacturer
Ruimeng
File Size
926.37 KB
Datasheet
MS6001-Ruimeng.pdf
Description
Rail-to-Rail Input/Output Amplifier
Note
This datasheet PDF includes multiple part numbers: MS6004S, MS6001.
Please refer to the document for exact specifications by model.

Features

* supply voltage range :1.8V to 5.0V
* operating temperature range :- 40℃ to 125℃
* supply current:40uA/Amp(1.8V)
* phase margin:65°
* rail-to-rail input and output
* single , dule, and quad packages
* High ESD protect -HBM:5000V PACKAGE/ORDERING INFORMATION Product Pa

Applications

* AUTO
* Portable Equipment
* Piezo Electrical Amplifier
* Active Filters
* Medical Equipment
* Battery Powered Systems Hangzhou Ruimeng Technology Co. ,LTD Http://www. relmon. com VERSION:1.1 - PAGE 1 - 2020.05.12 MS6001/2/4 ABSOLUTE MAXIMUM RATINGS Stresses below those l
