MS60N60HGC1, MS60N60HGB3 MOSFET

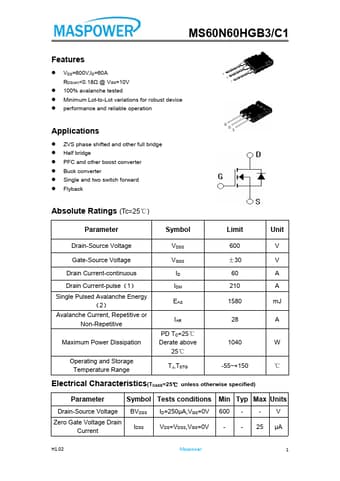

📥 Download Datasheet  Datasheet Preview Page 1

Description

MS60N60HGB3/C1 .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MS60N60HGC1, MS60N60HGB3. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MS60N60HGC1, MS60N60HGB3
Manufacturer
MASPOWER
File Size
2.81 MB
Datasheet
MS60N60HGB3-MASPOWER.pdf
Description
MOSFET
Note
This datasheet PDF includes multiple part numbers: MS60N60HGC1, MS60N60HGB3.
Please refer to the document for exact specifications by model.

Features

* VDS=600V,ID=60A RDS(on)

Applications

* ZVS phase shifted and other full bridge
* Half bridge
* PFC and other boost converter
* Buck converter
* Single and two switch forward
* Flyback Absolute Ratings (Tc=25℃) Parameter Symbol Limit Unit Drain-Source Voltage VDSS 600 V Gate-Source Voltage VGSS ±30 V
