MS6001

Rail-to-Rail Input/Output Amplifier

MS6001 Features

* supply voltage range :1.8V to 5.0V

* operating temperature range :- 40℃ to 125℃

* supply current:40uA/Amp(1.8V)

* phase margin:65°

* rail-to-rail input and output

* single , dule, and quad packages

* High ESD protect -HBM:5000V PACKAGE/ORDERING INFORMATION Product Pa

MS6001 General Description

MS6001/2/4 are single , dule, and quad rail-to-rail input and output amplifiers. The amplifiers ‘s bandwidth is 1.2MHz(at VCC=5V), and phase margin is 65°. The Supply Voltage Range is 1.8V to 5.0V. MS6001 is available in SOT23-5 package, MS6002 is available in SOP8 and MSOP8 packages, MS6004 is avai.

MS6001 Datasheet (926.37 KB)

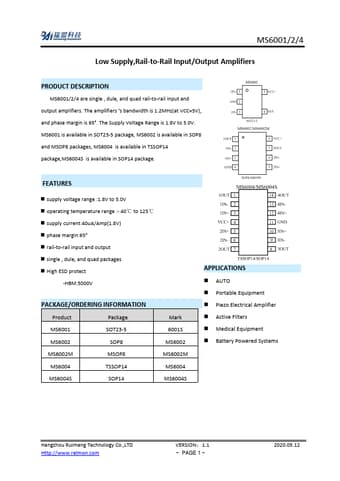

Preview of MS6001 PDF

Datasheet Details

Part number:

MS6001

Manufacturer:

Ruimeng

File Size:

926.37 KB

Description:

Rail-to-rail input/output amplifier.
