GBJ15005 15 AMPERE SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS

GBJ15005 Description

MOSPEC 15 AMPERE SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS .

GBJ15005 Features

* Glass Passivated Die Construction Low Reverse Leakage Current High Case dielectric strength 1500 VRMS Ideal for printed circuit boards Surge Overload Rating to 240A Peak MECHANICAL DATA Case: Molded Plastic Epoxy: UL94V-O rate flame retardant Terminals Plated Leads Solderable Per MIL-STD-202 Method

📥 Download Datasheet

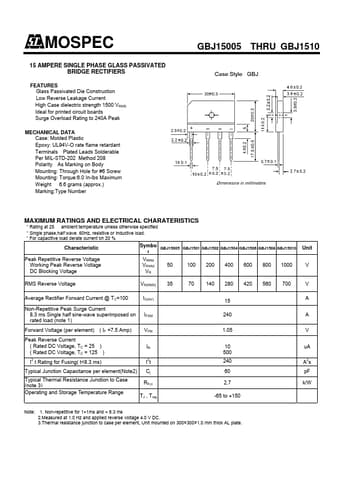

Preview of GBJ15005 PDF
datasheet Preview Page 2

Datasheet Details

Part number
GBJ15005
Manufacturer
MOSPEC
File Size
74.20 KB
Datasheet
GBJ15005-MOSPEC.pdf
Description
15 AMPERE SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS
