FL42STH25-0404A Datasheet - MOTION CONTROL PRODUCTS

FL42STH25-0404A High Torque Hybrid Stepping Motor

1.8 Size 42mm High Torque Hybrid Stepping Motor General Specification for High Torque Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Shaft Radial Play Shaft Axial Play Max. radial force Max. axial force Rotation Specifications 1.8 5% (full step, no load) 10% 20% 80OC Max.(rated current,2 phase on) -20OC~+50OC 100M Min. ,500VDC 500VAC for one minute 0.02Max. (450 g-.

FL42STH25-0404A-MOTIONCONTROLPRODUCTS.pdf

Preview of FL42STH25-0404A PDF

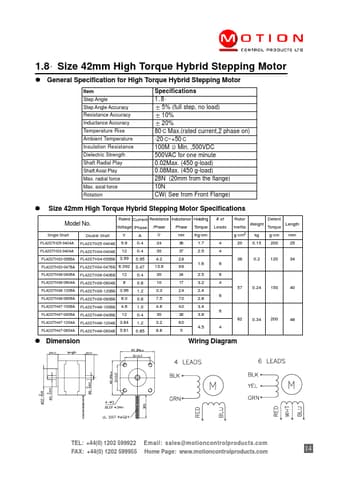

FL42STH25-0404A Datasheet Preview Page 2

Datasheet Details

Part number:

FL42STH25-0404A

Manufacturer:

MOTION CONTROL PRODUCTS

File Size:

78.45 KB

Description:

High torque hybrid stepping motor.
