ADC104 - Single & Dual Output DC/DC Converters

Product Overview

MPS Industries

Part number	ADC104
Manufacturer	MPS Industries
File Size	222.83 KB
Description	Single & Dual Output DC/DC Converters
Datasheet	ADC104 Datasheet
Note	This datasheet PDF includes multiple part numbers: ADC104, ADC100. Please refer to the document for exact specifications by model.

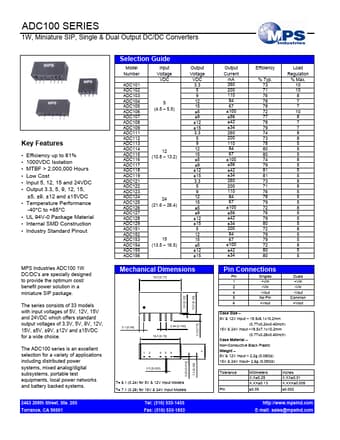

Additional preview pages of the ADC104 datasheet.

Efficiency up to 81% 1000VDC Isolation MTBF > 2,000,000 Hours Low Cost Input 5, 12, 15 and 24VDC Output 3.3, 5, 9, 12, 15, ±5, ±9, ±12 and ±15VDC Temperature Performance -40°C to +85°C UL 94V-0 Package Material Internal SMD Construction Industry Standard Pinout 12 (10.8.
13.2) 24 (21.6.
26.4) 15 (13.5.
16.5) MPS Industries ADC100 1W DC/DC's are specially designed to.
