ADC10464 - 10-Bit 600ns A/D Converter

National Semiconductor

📥 Download Datasheet

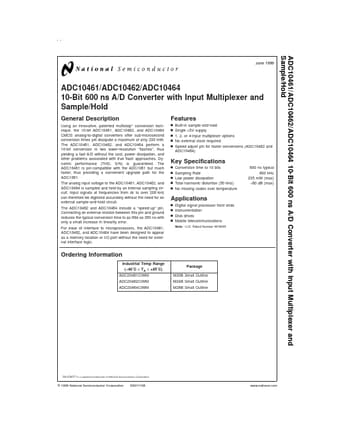

ADC10464 Datasheet Preview — Preview of ADC10464 PDF

Datasheet Details

Part number: ADC10464
Manufacturer: National Semiconductor
File Size: 333.84 KB
Datasheet: ADC10464_NationalSemiconductor.pdf
Description: 10-Bit 600ns A/D Converter

ADC10464 Product details

Description

Using an innovative, patented multistep. conversion technique, the 10-bit ADC10461, ADC10462, and ADC10464 CMOS analog-to-digital converters offer sub-microsecond conversion times yet dissipate a maximum of only 235 mW..

Features

n n n n n Built-in sample-and-hold Single +5V supply 1, 2, or 4-input multiplexer options No external clock required Speed adjust pin for faster conversions (ADC10462 and ADC10464) Key Specifications n n n n n Conversion time to 10 bits Sampling Rate Low power dissipation Total harmonic distortion (50 kHz) No missing codes over temperature 600 ns typical 800 kHz 235 mW (max).
60 dB (max).
