ADC104S101

4-Channel 500ksps to 1Msps 10-Bit A/D Converter

ADC104S101 Features

* 1

* 2 Specified Over a Range of Sample Rates

* Four Input Channels

* Variable Power Management

* Single Power Supply with 2.7V - 5.25V Range KEY SPECIFICATIONS

* DNL: +0.26/

* 0.16 LSB (Typ)

* INL: +0.4/

* 0.1 LSB (Typ)

* SNR: 61.7 d

ADC104S101 General Description

The ADC104S101 is a low-power, four-channel CMOS 10-bit analog-to-digital converter with a highspeed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC104S101 is fully specified over a sample rate range of 500 ksps to 1 Msps. The conver.

ADC104S101 Datasheet (1.61 MB)

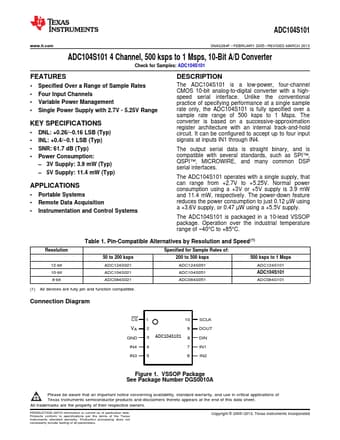

Preview of ADC104S101 PDF

Datasheet Details

Part number:

ADC104S101

Manufacturer:

Texas Instruments ↗

File Size:

1.61 MB

Description:

4-channel 500ksps to 1msps 10-bit a/d converter.
ADC104S101 www.ti.com SNAS284F

* FEBRUARY 2005

* REVISED MARCH 2013 ADC104S101 4 Channel, 500 ksps to 1 Msps, 10-Bit A/D Converter .
