ADC203 Single & Dual Output DC/DC Converters

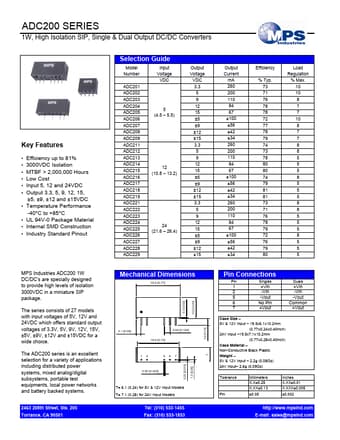

www.DataSheet.co.kr ADC200 SERIES 1W, High Isolation SIP, Single & Dual Output DC/DC Converters Selection Guide Model Number ADC201 ADC202 ADC203 ADC204 ADC205 ADC206 ADC207 ADC208 ADC209 ADC211 ADC212 ADC213 ADC214 ADC215 ADC216 ADC217 ADC218 ADC219 ADC221 ADC222 ADC223 ADC224 ADC225 ADC226 ADC227 ADC228 ADC229 Input Voltage VDC Output Voltage VDC 3.3 5 9 12 15 ±5 ±9 ±12 ±15 3.3 5 9 12 15 ±5 ±9 ±12 ±15 3.3 5 9 12 15 ±5 ±9 ±12 ±15 Output Current mA 260 200 110 84 67 ±100 ±56 ±42 ±34 260 200 110.

ADC203 Features

* Efficiency up to 81% 3000VDC Isolation MTBF > 2,000,000 Hours Low Cost Input 5, 12 and 24VDC Output 3.3, 5, 9, 12, 15, ±5, ±9, ±12 and ±15VDC Temperature Performance -40°C to +85°C UL 94V-0 Package Ma
