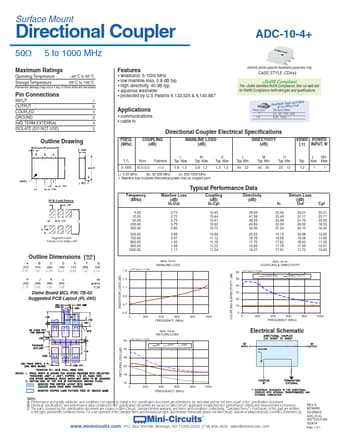

ADC-10-4+ Datasheet, Coupler, Mini-Circuits

✔ ADC-10-4+ Features

wideband, 5-1000 MHz
low mainline loss, 0.8 dB typ.
high directivity, 40 dB typ.
aqueous washable
protected by U.S Patents 6,133,525 & 6,140,887 Applications

✔ ADC-10-4+ Application

communications
cable tv Generic photo used for illustration purposes only CASE STYLE: CD542 +RoHS Compl

PDF File Details

Mini-Circuits manufacturer logo

Part number:

ADC-10-4+

Manufacturer:

Mini-Circuits

File Size:

277.51kb

Download:

📄 Datasheet

Description:

Directional coupler.

📥 Download PDF (277.51kb)
