ADC-0803

A/D Converters

ADC-0803 Features

* 80C48 and 80C80/85 Bus Compatible - No Interfacing Logic Required

* Conversion Time < 100µs

* Easy Interface to Most Microprocessors

* Will Operate in a “Stand Alone” Mode

* Differential Analog Voltage Inputs

* Works with Bandgap Voltage References

ADC-0803 General Description

The ADC0802 family are CMOS 8-Bit, successive-approximation A/D converters which use a modified potentiometric ladder and are designed to operate with the 8080A control bus via three-state outputs. These converters appear to the processor as memory locations or I/O ports, and hence no interfacing log.

ADC-0803 Datasheet (331.03 KB)

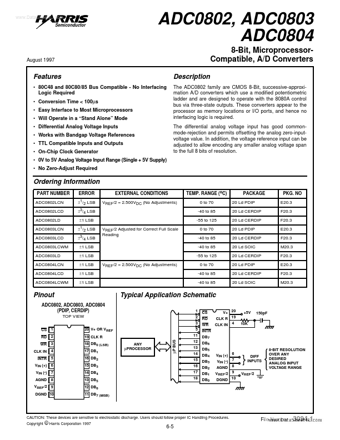

Preview of ADC-0803 PDF

Datasheet Details

Part number:

ADC-0803

Manufacturer:

Harris

File Size:

331.03 KB

Description:

A/d converters.
