ADC-207 - CMOS Flash A/D Converters

Datel

The ADC-207 by Datel is a CMOS Flash A/D Converters. Below is the official datasheet preview.

📥 Download Datasheet

ADC-207 CMOS Flash A/D Converters by Datel - Datasheet Preview — Official preview page of the ADC-207 CMOS Flash A/D Converters datasheet (Datel).

Datasheet Details

Part number	ADC-207
Manufacturer	Datel
File Size	252.40 KB
Description	CMOS Flash A/D Converters
Datasheet	ADC-207-Datel.pdf

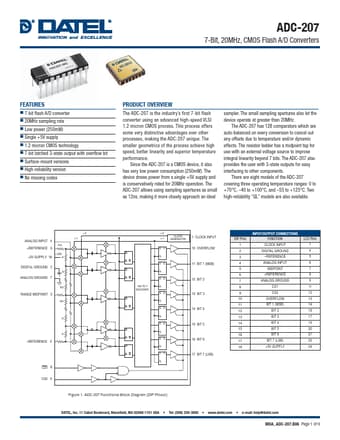

Additional preview pages of the ADC-207 datasheet.

ADC-207 Product details

Features

7-bit flash A/D converter.
20MHz sampling rate.
Low power (250mW).
Single +5V supply.
1.2 micron CMOS technology.
7-bit latched 3-state output with overflow bit.
Surface-mount versions.
High-reliability version.
No missing codes.
