ADC-305

The ADC-305 is 20MHz CMOS A/D Converters designed by Datel.

Product Overview

Datel

📥 Download Datasheet

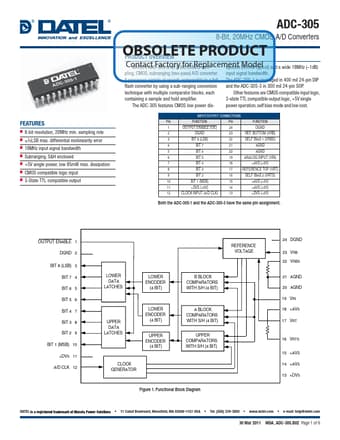

ADC-305 20MHz CMOS A/D Converters by Datel - Datasheet Preview — Datasheet preview – ADC-305

Datasheet Details

Part number	ADC-305
Manufacturer	Datel
File Size	234.99 KB
Description	20MHz CMOS A/D Converters
Datasheet	ADC-305-Datel.pdf
Additional preview pages of the ADC-305 datasheet.

Product details

Features

8-bit resolution, 20MHz min. sampling rate.
±½LSB max. differential nonlinearity error.
18MHz input signal bandwidth.
Subranging, S&H enclosed.
+5V single power, low 85mW max. dissipation.
CMOS compatible logic input.
3-State TTL compatible output ADC-305 8-Bit, 20MHz CMOS A/D Converters.
